产品列表: 机械类 Mahinery:         ----(最少起订量:10台  Minimum Order 10sets )


Machinery



Name:



3-cylinder beating screen  2-cylinder beating screen
Description:


As separation and screening equipment, this HR3-80 3-cylinder beating screen mainly used for oil-expelling and cleaning process of cottonseed, after the external husk is stripped by decorticator, the cottonseed can be fed into this machine directly for separation between husk and kernel, also transfer into this machine for fine screening after treatment of vibration-flat sieve so that the treatment capacity can be enhanced by times. The cottonseed with the process of this machine will be divided into two ways to be conveyed into screen drum, the cottonseed husk remained in screen drum will flow away from the discharge hole under the push of spiral beating-rod, while the cottonseed kernel  will fall down to auger groove and drop down from the discharge hole of auger and enter into the next process(pressed shape).

Screenability: kernel content in waste cottonseed husk is less than 0.5%

                The husk in finished cottonseed kernel is less than 16%

It is easy to operate this machine, generally speaking, there is no need to carry out any adjustment after installation, only after connect the motor with proper power, this machine can be put into use.





Main technical parameters

2-80

3-80

Production capacity(direct long-term use)

100-120 ton/day

100-120 ton/day

Mating motor

Y160L-8 7.5KW

Y180L-8 11KW

Sieve plate size

18.2 m2

27 m2

sieve-drum diameter

φ800mm

φ800mm

sieve-drum length

3600 mm

3600 mm

sieve-drum speed

12r/min

12 r/min

Spindle speed

145 r/min

145 r/min

Overall dimension

4800×1950×2550(mm)

5000×2700×2900(mm)

Total weight

2800 kg

3800 kg













Name:

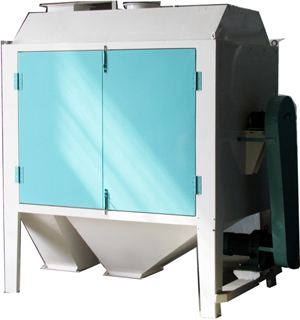

DCQYS series single-deck cylinder scealperator




Description:



DCQYS85/100

DCQYS 100/125

DCQYS 125/150

DCQYS 125/250

DCQYS 125/320

wheat



ID of sieve plate

(mm)

φ24

20~90

40~130

50~190

80~220

11~240

φ20

φ18

corn

ID of sieve plate

(mm)

φ28

20~100

50~150

60~200

100~240

120~260

φ24

φ20

soybean

ID of sieve plate

(mm)

φ24

20~120

60~200

70~220

120~260

140~300

φ22

φ20

φ18

paddy rice

ID of sieve plate

(mm)

φ24

10~40

30~90

40~140

60~160


















Name:


LXQ130 chunk spindle veneer rotary lathe





Description:

1. LXQ130 chunk spindle veneer rotary lathe is the main equipment to produce plywood.

2. With compact structure and stable property, it can be operated easily and produce products with high production efficiency.

3. It produces smooth and even thickness veneers, has no injury on wooden shaft and no drilling on duramen, it is used widely and with good quality but low price.











                                                                Model

Main technical senate



 LXQ130

External dimensions

 3300×1500×1220(mm)

Machine gross weight

 about 2000kg

Peeled logs specifications

 φ700×1300(mm)

Peeling knife specifications(L×W×H)

 1400×130×12.7(mm)

spindle speed

 70.8(r/min)

The largest knife stroke

 350 mm



Peeling knife blade arc length

vertical mill

 28 mm

Flat grinding

 30~33(mm)



Electrical machinery power



Main power

 Y160M-4      11KW

Fast Forward Motor

 Y90L-6      1.1KW

Clamping motor

 Y112M-6     2.2KW







Name:

XQYT 130A multi-function machine for rotary cutting and veneer chopping





1.Numerical-control blade feeds, even veneer thickness whose differences are only ±0.05mm.

2.Automatically adjustable cutting space, flat veneer and good smoothness.

3. In the process of cutting veneers you can adjust two kinds of veneer thicknesses, the veneers will not be separate.

4. The machine can cut the veneer with the same width and save labour;  it is fast and convenient to install and disassemble rubber roller and guillotine.

5. Intelligent human-computer interface makes the operation condition very clear.



Description:



                   Model



Main technical senate

XQYT130A

External dimensions

2440×2465×1250(mm)

Total weight

2.5t

The largest peeling diameter

300mm

The smallest peeling diameter

28mm

The maximum peeling length

1300 mm

Length of peeling knife

1400 mm

Thickness of peeling belt

0.6~3.6(mm)

Main electrical machinery power

4KW












Name:

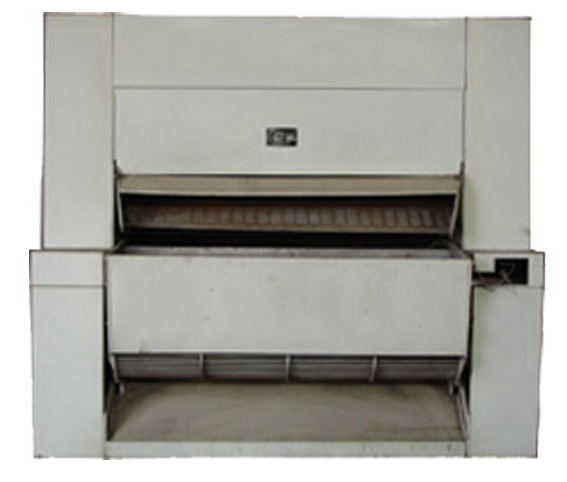

MQP400-2000/1600/1250 sawtooth lint cleaning machine





Description:

Based on the American “Sixteen-D” lint cleaning machine and combining domestic situation, we successfully developed this new type machine through five improvement, it covers the advantages like reliable performance, even cotton layer, high working efficiency and lower loss rate of cotton fiber and alike. There are MQP400-2000, MQP400-1600, MQP400-1250 for your option, you may use this series machines to match various cotton-ginning machine.

Main technical parameters

MQP400-2000

MQP400-1600

MQP400-1250

Max. output capacity

1800 kg/h

1440 kg/h

1125 kg/h

Driving power

(Licker-in motor)

Y160L-4 15KW

(给棉电机)

Y160M2-8 5.5KW

(Licker-in motor)

Y160L-4 11KW

(给棉电机)

Y160M1-8 4KW

(Licker-in motor)

Y132M-4 7.5KW

(给棉电机)

Y132M-8 3KW

Cleaning efficiency

≥35%

≥35%

≥35%

Licker-in spec

400×2000(mm)

400×1600(mm)

400×1250(mm)

Overall dimension

2800×1330×2450(mm)

2400×1330×2425(mm)

2050×1330×2450(mm)

Total weight

4000 kg

3200 kg

2600 kg

Note

  1.unginned cotton grade: 1-6

  2. Water content in lint cotton: 6-9%
